Chester Cat Shelf Installation

Installation Notes

  • We advise against mounting these shelves directly onto drywall without using the studs behind for support.
  • The drywall anchors should NOT be used as the only way of fastening the shelves. Only use these drywall anchors when at least two other screws on a bracket are fastened to the stud.
  • These shelves can also be installed on solid walls such as concrete or masonry, but require a different type of wall anchors from the ones provided in this package.
Step 1



Watch this video to understand how to use a stud finder correctly.

Step 2

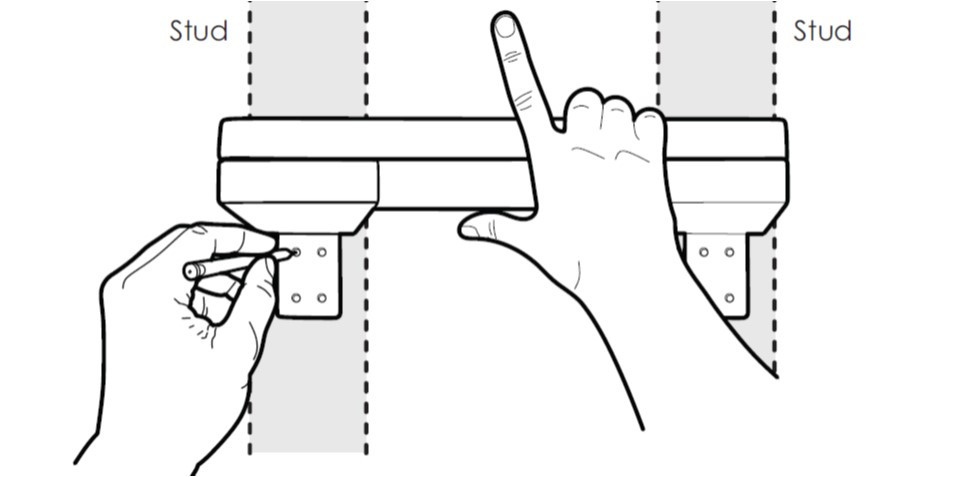

Hold the shelf on the wall over the wall stud and mark the location of the first hole. Drill a small pilot hole at the marked point (we recommend angling each hole about 10 degrees towards the center of the wall stud).

Step 3

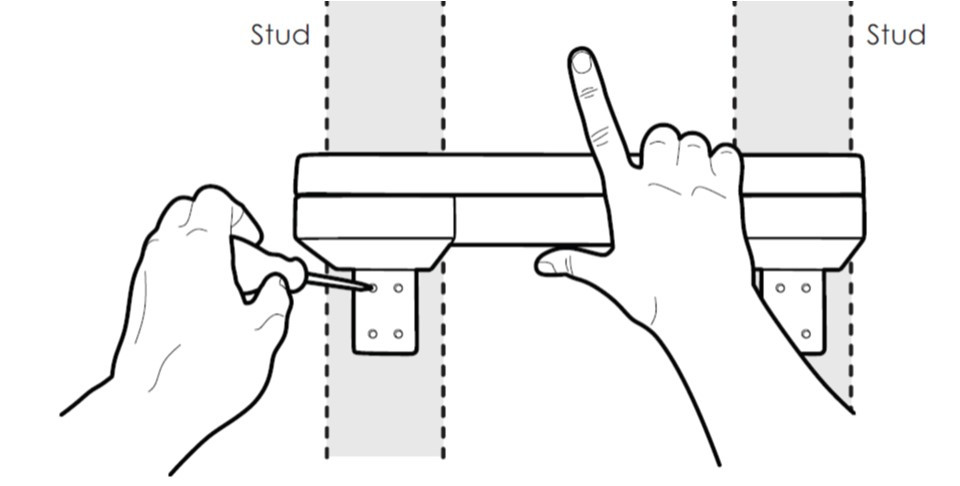

Partially tighten screw into drilled hole using a screwdriver.

Step 4

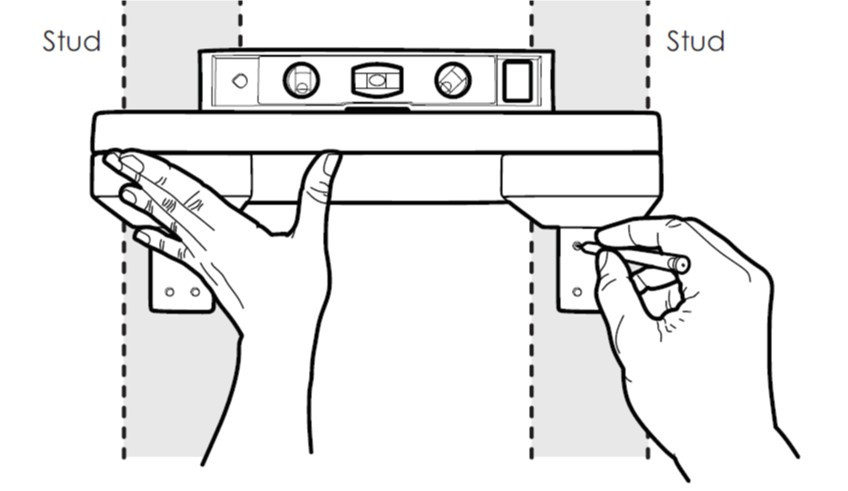

Use a level to make sure the shelf is level. Mark the first hole on the second bracket, drill and install second screw. Drill and screw for all remaining holes.

Step 5

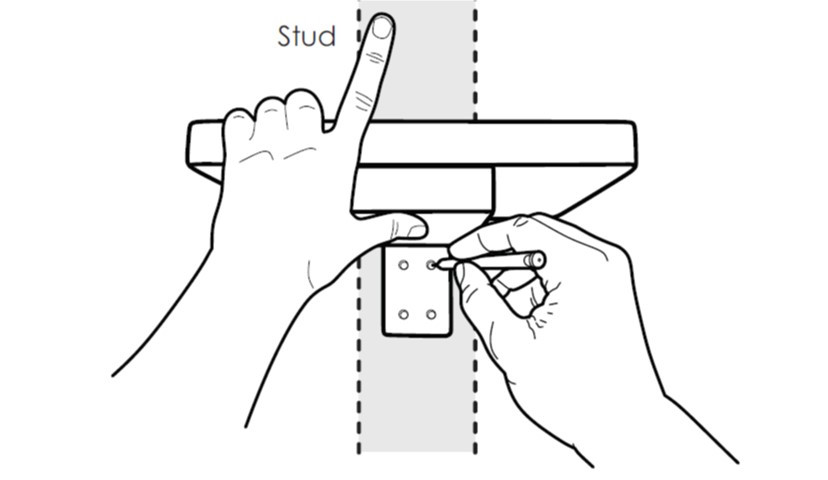

FOR SHORT SHELVES WITH ONE BRACKET, mark the hole on the right side of the bracket, drill and install the second screw. Drill holes and screw for remaining holes.

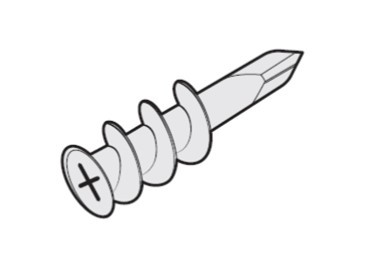

HOW TO USE THE PROVIDED DRYWALL ANCHORS

When using the provided drywall anchors, there are two different ways of installing:

  • Option 1: Simply put the anchor on the end of the screwdriver, and drive straight into the wall. The anchor will cut a hole as it goes. Twist until flush with wall.
  • Option 2: Drill a hole in the drywall (or just punch a hole with a screwdriver), and drive the anchor into the hole with a screwdriver until flush with the wall.
TELL US WHAT YOU THINK

Send us your photos and videos. We'd love to see how you are using the product.



Was setup as easy as we hoped?



Send us your setup videos, and photos of the finished product to help@labbrands.co.

Write an unbiased review at www.amazon.com/yourorders.

Newcastle Gym Storage Rack Set up

Step 1

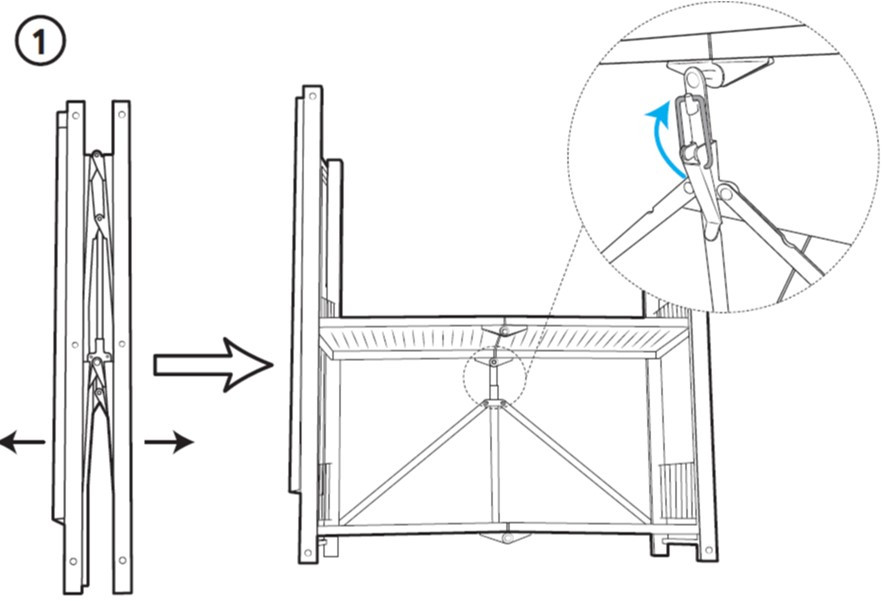

Expand rack by pulling side legs apart. Lock the rack on the back by placing the latch onto the hook on the middle shelf, and pushing down on the lever.

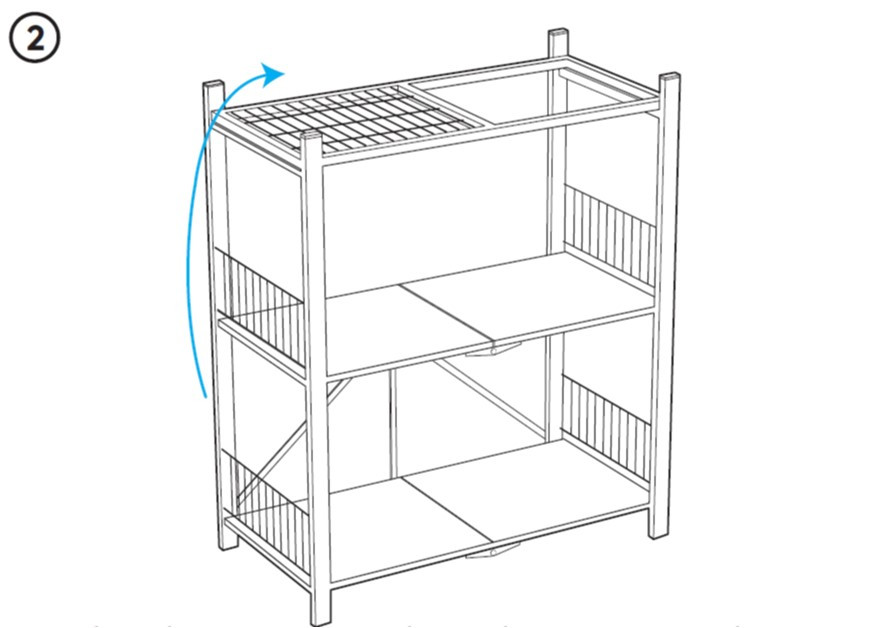

Step 2

Carefully flip the top shelf over from the side of rack and gently push into place.

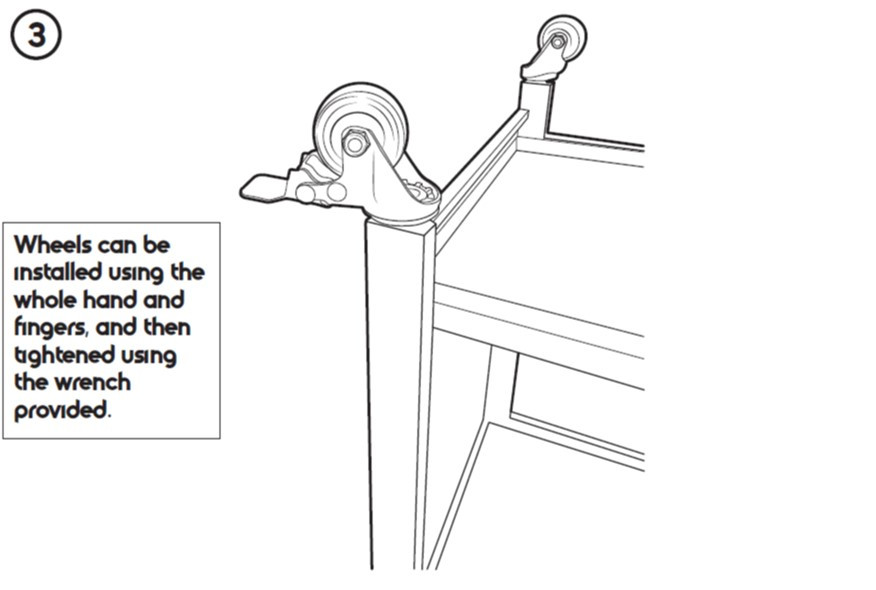

Step 3

Keeping a firm hold on the top shelf, turn the rack upside  down, and attach wheels. Lockable wheels in front, non- lockable wheels at the back.

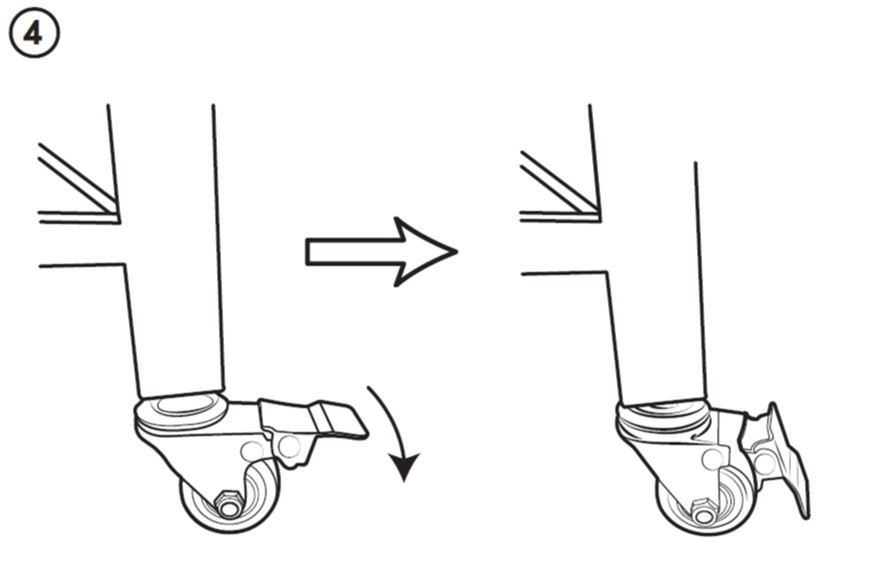

Step 4

Turn the rack back to the right side and lock the wheels to stop the rack moving as you complete the set up.

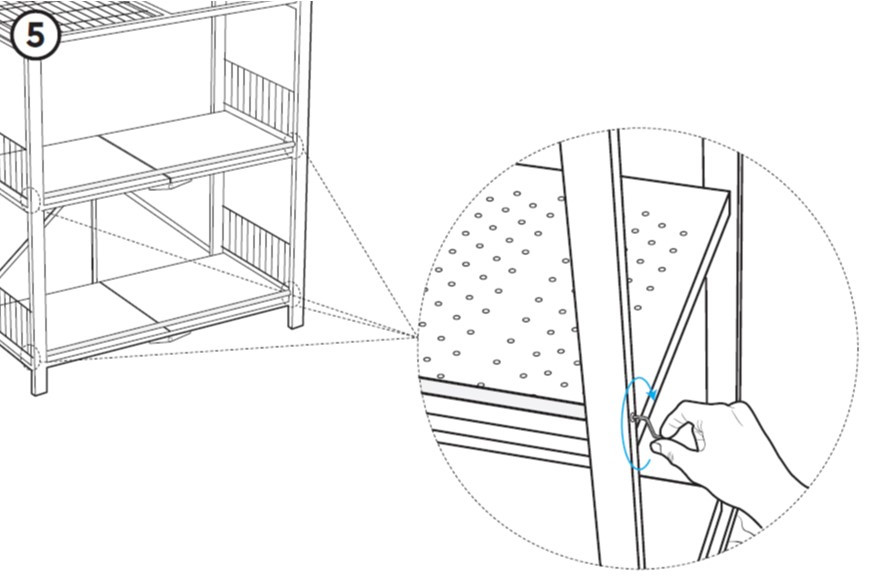

Step 5

Install the retaining bars, using the 4x long screws provided.

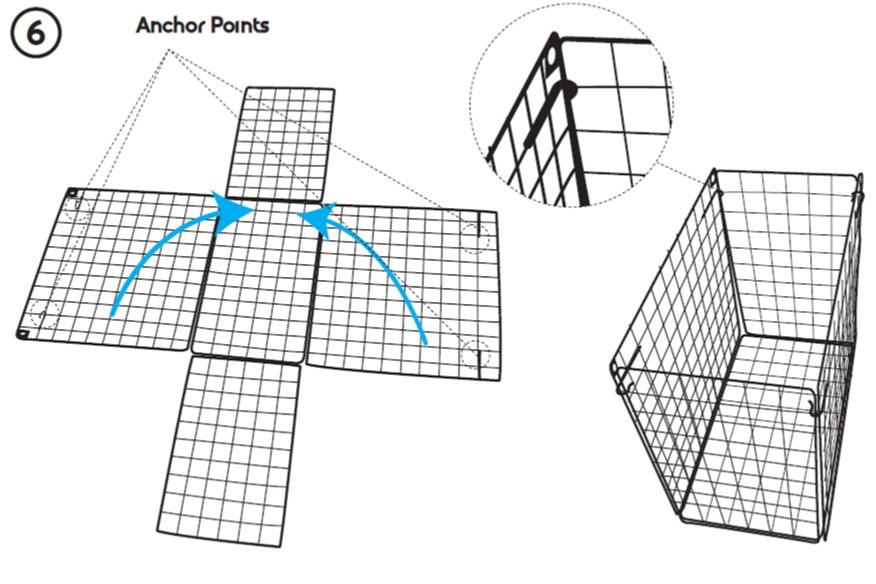

Step 6

To assemble the side basket, hold the larger sides up (blue arrows) and fasten the other two smaller sides in place at the anchor points as shown.

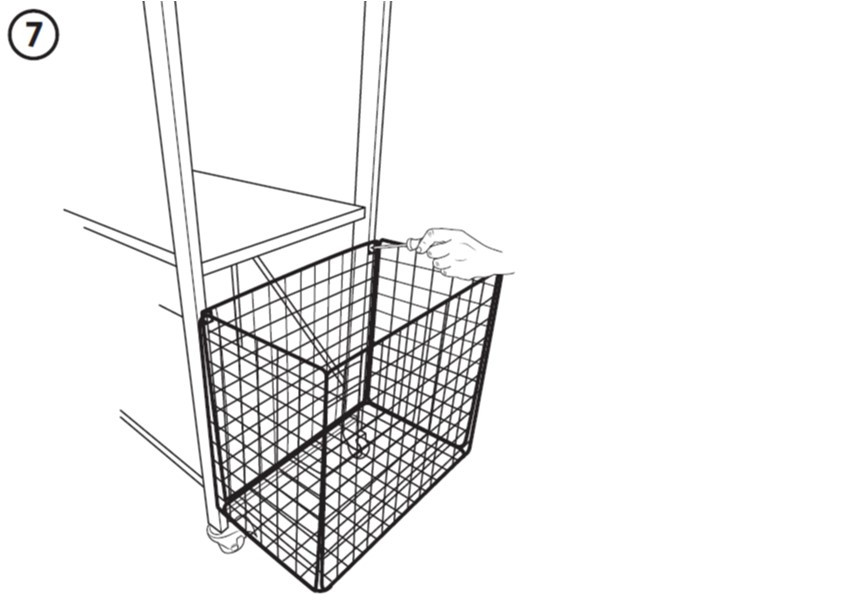

Step 7

Affix the assembled basket on the side of the rack using the two short screws and star head screwdriver.

Step 8

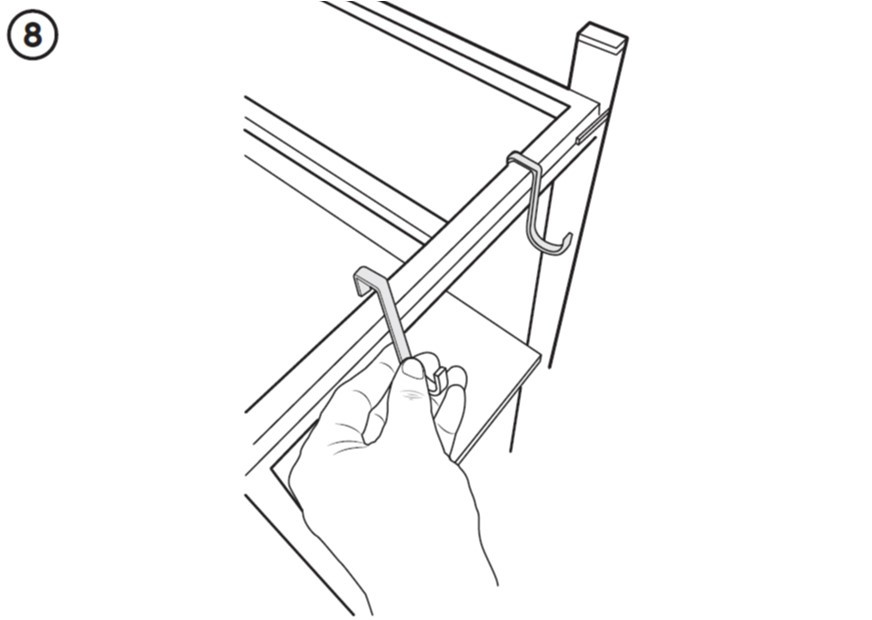

Attach S-hooks to top of rack on the basket side.

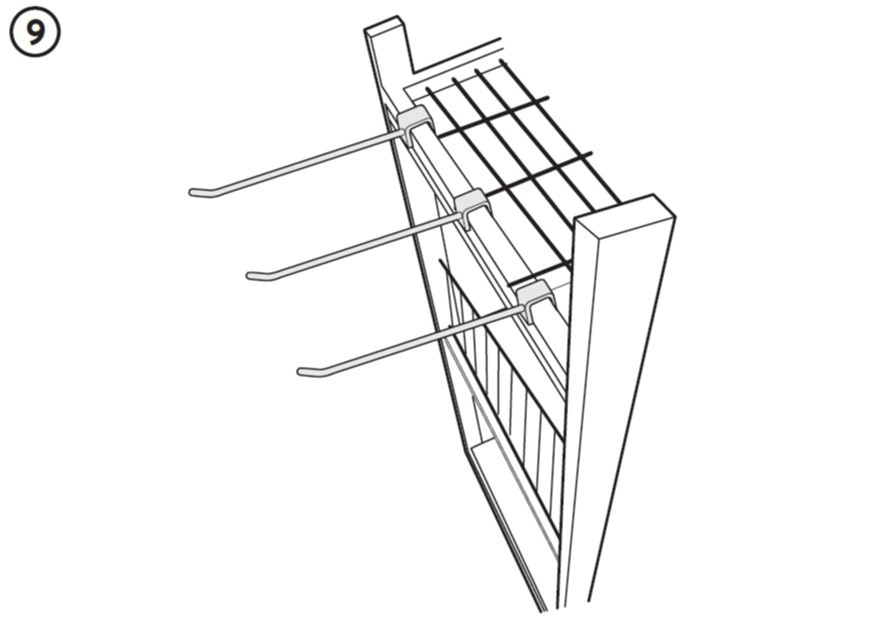

Step 9

Attach the long hanging bars on the other side of the rack.
